Parking sensor with audible alert

Parking assistant with audible distance alerts. It works by using ultrasonic waves transmitted via sensors in the rear bumper. It is activated when reverse gear is engaged.

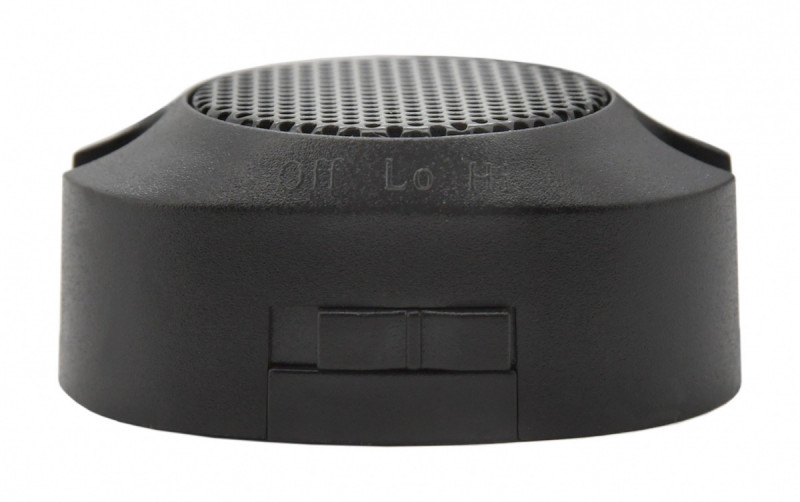

The intensity of the beeping sound informs the driver of the distance to the obstacle; the volume of the sound signal can be adjusted using a switch on the speaker. The system helps the driver to park safely and prevents unexpected collisions (e.g. when the driver has limited visibility or the obstacle is outside their field of vision).

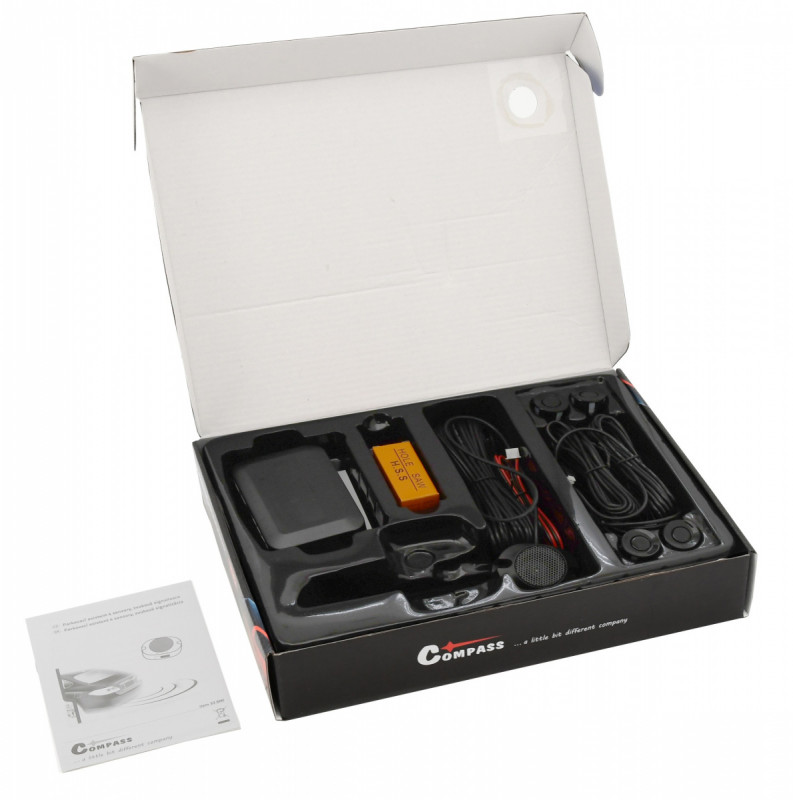

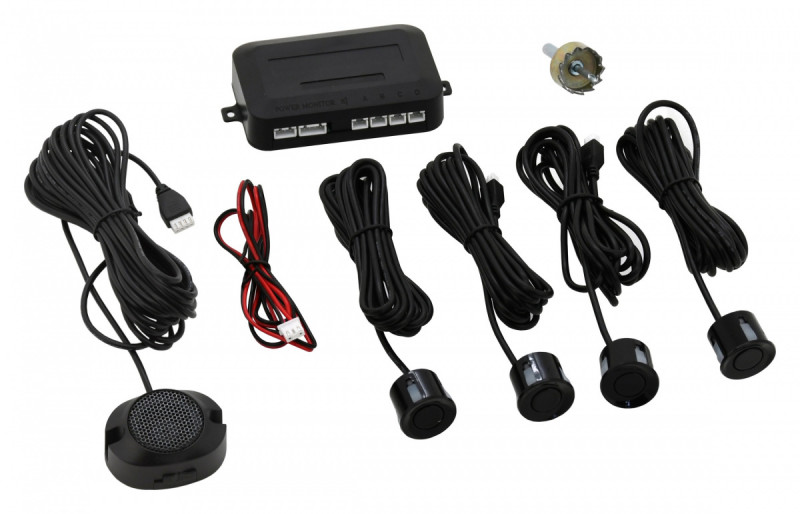

The pack contains a speaker, a control unit, 4 sensors for mounting in the rear bumper, the necessary cabling and a drill bit of the appropriate diameter.

• Audible alert: a beep that increases in volume as the vehicle approaches
• Power supply: 12V = (10.5–16V)
• Monitoring range: 0–2.5 m
• Obstacle detection: 0.1–2.5 m
• Operating temperature: -20 – +70°C
• Sensor type: 40 kHz ultrasonic

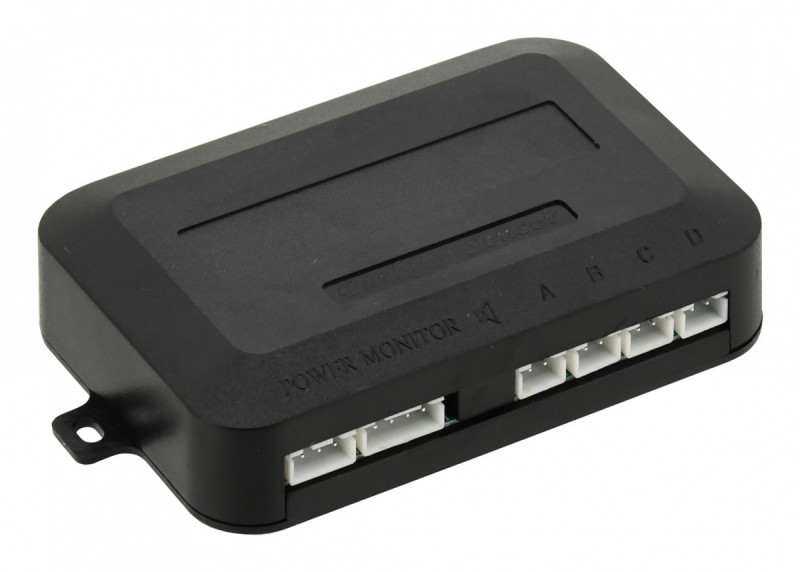

• Control unit

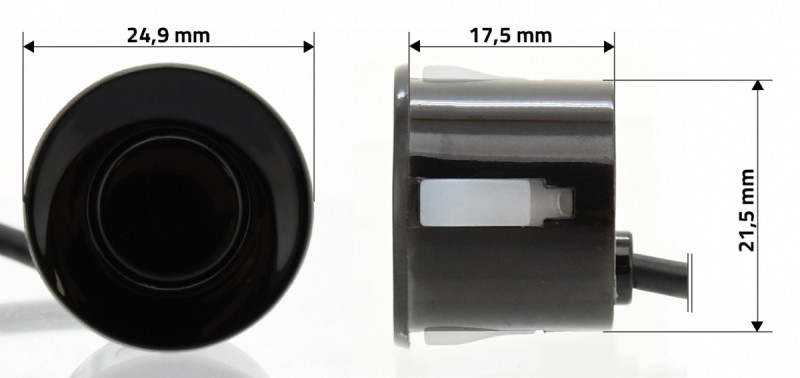

• 4 ultrasonic sensors

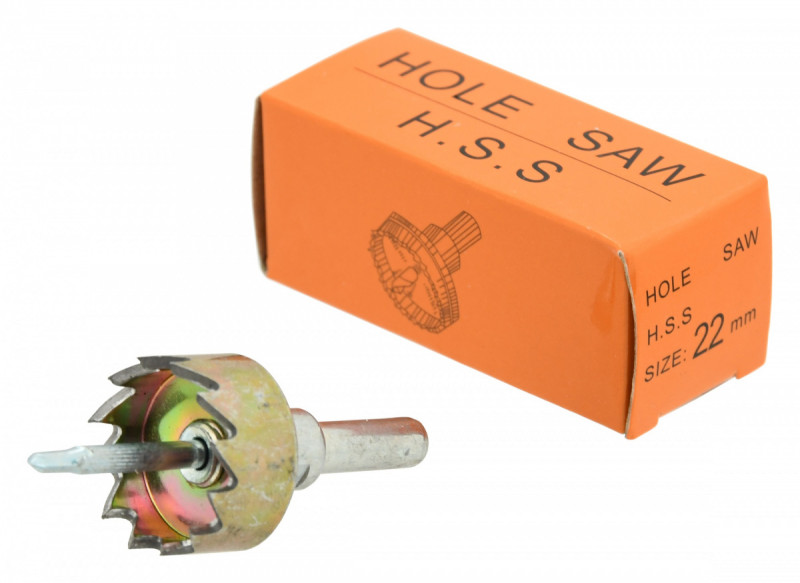

• Cutter for drilling a precise hole for the sensors
• Cabling and mounting hardware
• Installation instructions
