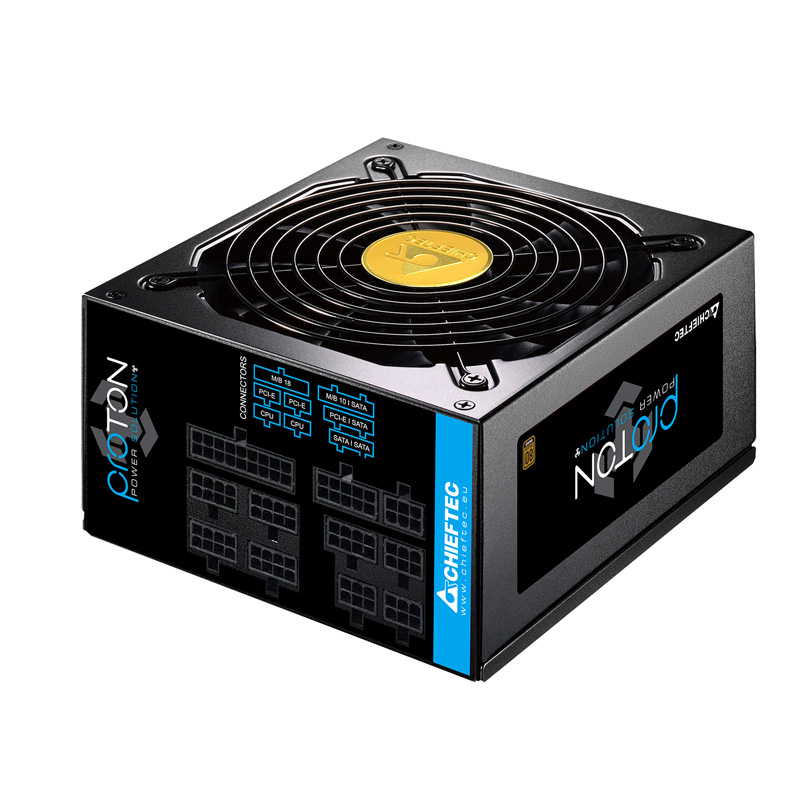

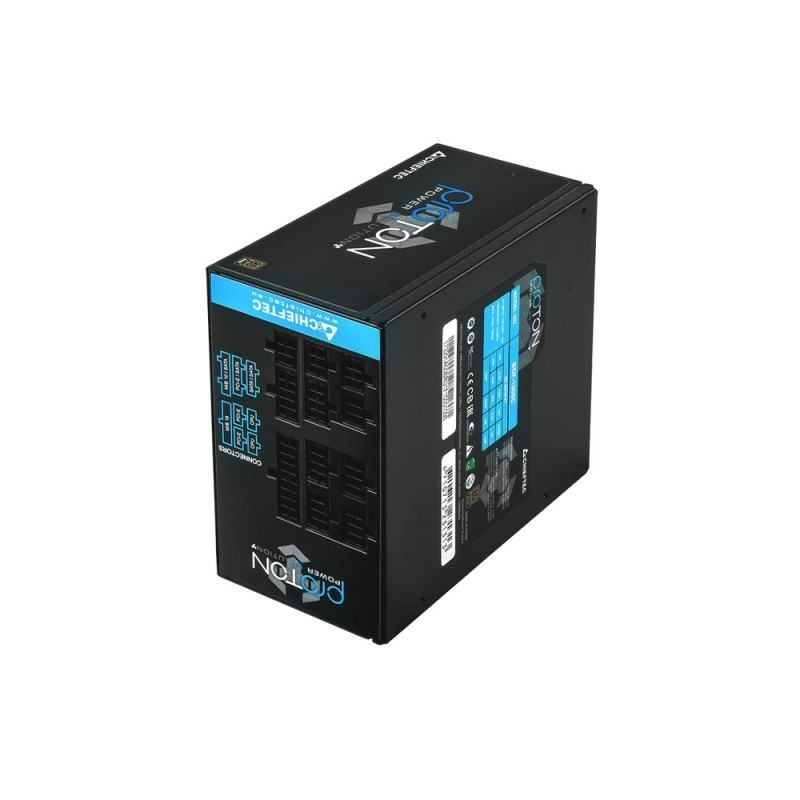

Napajalnik 850W, CHIEFTEC BDF-850C v2.3, 80 PLUS Bronze (88%), APFC, modularni, 140mm vent
Pomembna informacija
PODOBNI IZDELKI
Tehnični podatki
splošnoTip napraveMoč supply - active Moč Factor Correction (PFC) - internalSpecification ComplianceATX12V 2.3
Moč DeviceInput VoltageAC 115-230 VFrequency Required50 - 60 HzMoč Output Connectors Details1 x power 24 pin ATX with detachable 4 pin section ¦ 9 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 PIN mini-power connectorOutput Voltage+3.3, +5, ±12 VMoč Kapaciteta850 WattOutput Current+5V - 22 A ¦ +3.3V - 22 A ¦ +12V1 - 70.5 A ¦ -12V - 0.5 A ¦ +5VSB - 3 AEfficiency85%Moč Factor (PF)0.980 PLUS certifikat80 PLUS Bronze
OstaloCooling System140 mm fanlastnostiOverheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection, DC-DC technology, fan speed controlSkladni standardi TUV, CB, RoHS, ERP
Okoljski StandardiENERGY STARda
Garancija proizvajalcaServis - PodporaLimited garancija - 2 leta
dimenzije - težaWidth15 cmDepth14 cmHeight8.7 cm
