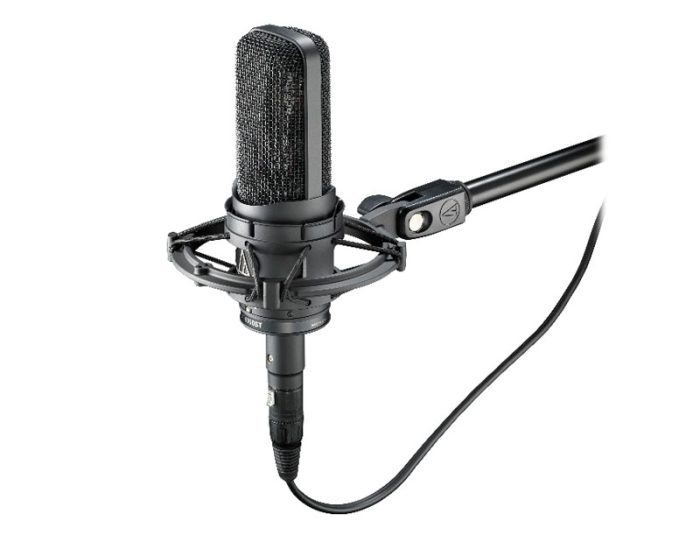

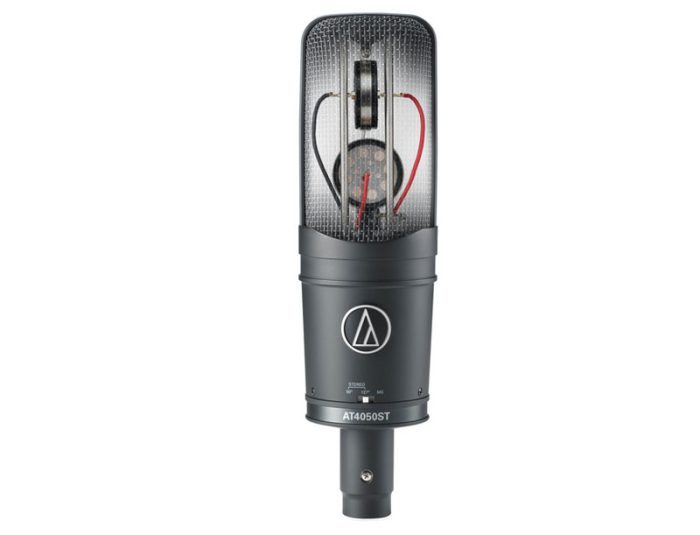

Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion. Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement Independent cardioid and figure-of-eight condenser elements Switch selection of Mid-Side mode and two internally matrixed stereo modes Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections Integral 80 Hz high-pass filter switch and 10 dB pad switch State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards Custom shock mount provides superior isolation Certified by the METAlliance (Music Engineering and Technology Alliance)ELEMENTExternally-polarized (DC bias) condenserPOLAR PATTERNCardioid and Figure-of-eightFREQUENCY RESPONSE20-18,000 HzLOW FREQUENCY ROLL-OFF80 Hz, 12 dB/octaveOPEN CIRCUIT SENSITIVITYStereo 90°: -42 dB (7.9 mV) dB re 1V at 1 PaStereo 127°: -41 dB (8.9 mV) dB re 1V at 1 PaMid: -36 dB (15.8 mV) dB re 1V at 1 PaSide: -36 dB (15.8 mV) dB re 1V at 1 PaIMPEDANCE50 ohmsMAXIMUM INPUT SOUND LEVELMid and Side: 149 dB SPL, 1 kHz at 1% T.H.D.159 dB SPL, with 10 dB pad (nominal)NOISEStereo 90°: 25 dB SPLStereo 127°: 16 dB SPLMid: 15 dB SPLSide: 17 dB SPLDYNAMIC RANGE (typical)Mid: 134 dB, 1 kHz at Max SPLSide: 132 dB, 1 kHz at Max SPLSIGNAL-TO-NOISE RATIOStereo 90°: 69 dB, 1 kHz at 1 PaStereo 127°: 78 dB, 1 kHz at 1 PaMid: 79 dB, 1 kHz at 1 PaSide: 77 dB, 1 kHz at 1 PaPHANTOM POWER REQUIREMENTS48V DC, 6.4 mA typical (both channels total)SWITCHES90°, 127°, M-SFlat, roll-off10 dB pad (nominal)WEIGHT517 g (18.2 oz)DIMENSIONS193.0 mm (7.60") long,53.4 mm (2.10") maximum body diameterOUTPUT CONNECTORIntegral 5-pin XLRM-typeCABLE5.0 m (16.5') long, 8-conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output endACCESSORIES FURNISHEDAT8449 shock mount for 5/8"-27 threaded stands microphone dust cover protective carrying caseAUDIO-TECHNICA CASE STYLER1
